TAIL Section of B17G...............................................................................................
Legend is below...............................................................................................................................
Details available are:   SIDE GUNS ..... . TAIL GUNS......................................

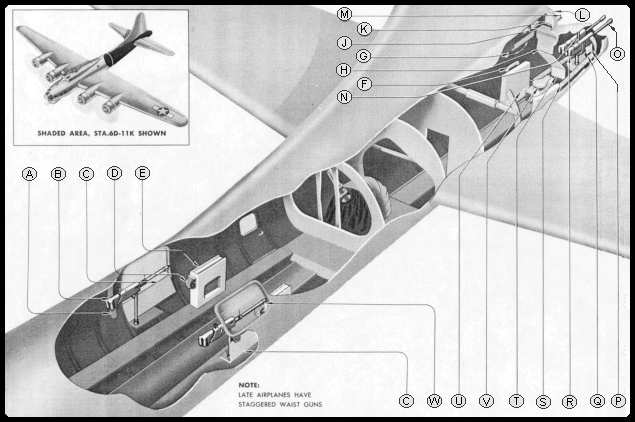

TAIL-SECTION DETAIL IMAGE
LEGEND
..A  Spoiler Installation
..B  M2 Mach. Gun .50cal, 2
..C  Armor, Side Gun, 2
..D  Flexible Chute, .50 Cal. 2
..E  Ammo. box - Side Gun, 2
..F  Azimuth Scale, Stowed
..G  Strap Assy. Armor Plate
..H  Armor Plate, Rear Gunner's

..J  Armor Plate, Rear Gunner's
..K  Window, Bullet Proof Glass
..L  Armor Plate, Rear Gunner's
..M  Gun Sight, Rear Gunner's
..N  Gun Mount Bracket
..O  Stabilizer, .50 Cal. Gun, 2
..P   Hopper, Ammunition
..Q  Ejection Chute, Ammo.
..R  M2 Mach. Gun .50cal, 2
..S  Flexible Feed
..T  Armor Plate, Rear Gunner's
..U  Ammo. Boxes .50 Cal., 2
..V  Rear Gunner's Seat Assy.
..W  Gun Stowage Bracket inst.
..
..
