MID Section of B17G.................................................................................................
Legend is below..................................................................................................................................
Details available are:   Bomb Bay and on Wings ..... . Radios on B17......................................
.............................   Bottom Ball Turret   .........  ...Radioman's Gun.........................

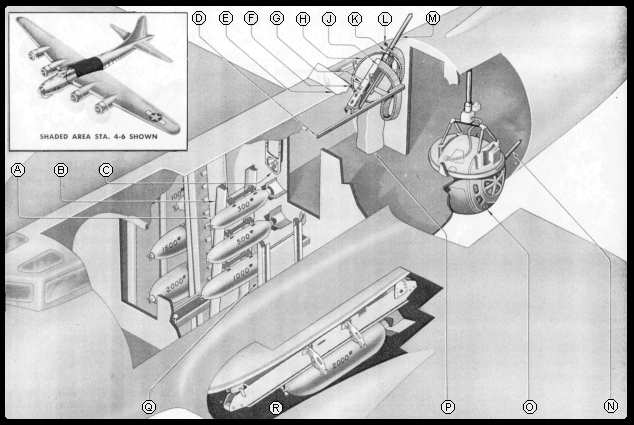

MID-SECTION DETAIL IMAGE
LEGEND

..A  Guard - Bomb Release
..B  Bomb Racks (Inbrd.) 2
..C  Hoist Frame, (Stowed)
..D  Gun Rack
..E  Spoiler, Top Gun Windows
..F  Sight, Folding Ring

..G  Gun Breech Heaters, 2
..H  Yoke, Gun Mount
..J  Chute, Flexible Feed
..K  Ammunition Box, .50 Cal.
..L  Sight, Folding Post
..M  M2 Mach. Gun .50cal, 2

..N  M2 Mach. Gun .50cal, 2
..O  Turret, Lower Spherical
..P   Ejected Shell Bag
..Q  Bomb Racks (Outbrd.) 2
..R  Bomb Racks (External) 2
..
..
