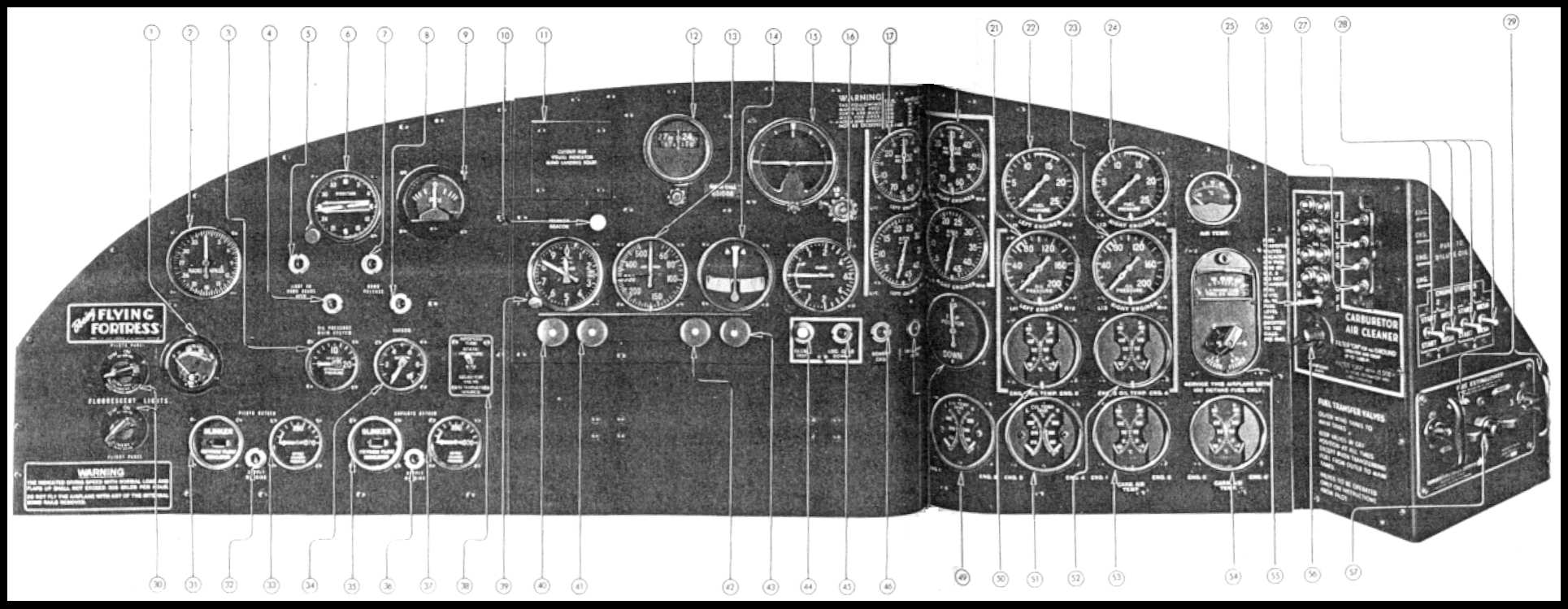

See LEGEND below. .......................................................................................................................................................
Legend
| ..1
VOLTMETER
..2 RADIO COMPASS ..3 HYD. OIL PRESS. Gage ..4 HYD PRESS. WARN Light ..5 BOMB DOORS OPEN - Light ..6 REMOTE COMPASS ..7 BOMB RELEASE Light ..8 VACUUM WARN Light ..9 P.D.I. EQUIPMENT ..10 MARKER BEACON |
..11
Cutout-Visual Indicator
.........BLIND LANDING ..12 TURN Indicator ..13 AIR SPEED Indicator ..14 TURN-BANK Indicator ..15 GYRO HORIZON Indicator ..16 RATE OF CLIMB Indicator ..17 MANIFOLD Press, L. Eng.s ..18 TACHOMETER-L. Engines ..19 TACHOMETER-R. Engines ..20 MANIFOLD Press, R. Eng.s |
..21
OIL Pressure Gage L. Eng.s
..22 FUEL Press. Gage L. Eng.s ..23 OIL Pressure Gage R. Eng.s ..24 FUEL Press. Gage R. Eng.s ..25 AIR TEMPERATURE Indicator ..26 CARBURETOR FILTER Switch ..27 OIL DILUTION Switches (4) ..28 STARTER Switches ..29 .FIRE EXTINGUISHER Release ..30 .FLUORESCENT LIGHT Switches |
..31
.PILOT's OXYGEN Flow Indicator
..32 PILOT's SUPPLY WARNING ..33 PILOT's Oxygen Cylinder Press. ..34 VACUUM (Suction Gage) ..35.Tail Gear Oil & Air Valve ..36 CoPILOT's SUPPLY WARNING ..37 CoPILOT's Oxygen Cylinder Press. ..38 AIRSPEED "Tube Static Pressure" ..........SELECTOR VALVE, Alt. Source ..39 ALTIMETER ..40 PROP. FEATHERING, Eng. 1 Button |
..41
PROP. FEATHERING, Eng. 2 Button
..42 PROP. FEATHERING, Eng. 3 Button ..43 PROP. FEATHERING, Eng. 4 Button ..44 GLOBE TEST ..45 .LANDING GEAR DOWN ..46 BOMBER CALL ..47 TAIL WHEEL LOCK ..48 FLAP POSITION INDICATOR ..49 Cyld. HEAD TEMP. Left Eng.s ..50 OIL TEMP. Gage - Left. Eng.s .. |
..51
Cyld. HEAD TEMP. Right Eng.s
..52 OIL TEMP. Gage - Right. Eng.s ..53 CARB. AIR TEMP. Left. Eng.s ..54 CARB. AIR TEMP. Right. Eng.s ..55 .FUEL QUANTITY Gage ..56 FLUORESENT LAMP Control ..57 ENGINE FIRE EXTINGUISHER ..........Selector Valve .. .. .. |
