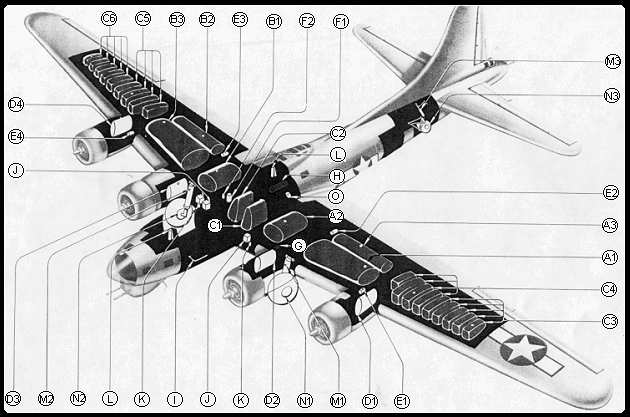

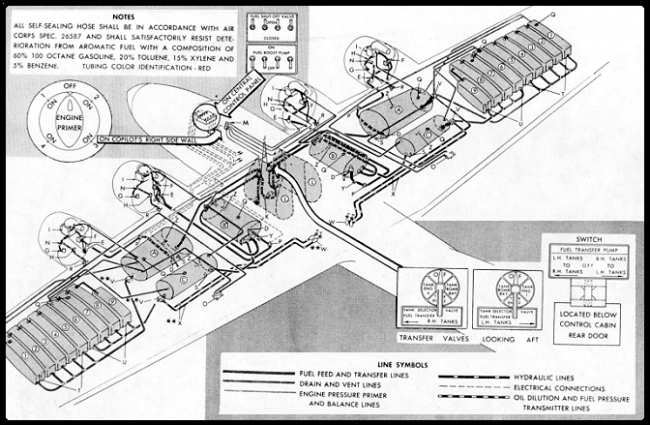

See LEGEND below. A second detail of the fuel system is shown at bottom..........................
Legend
| ..A1
Engine No. 1 Fuel Tank
..A2 Engine No. 2 Fuel Tank ..A3 Engine No. 2 Feeder Tank ..B1 Engine No. 3 Fuel Tank ..B2 Engine No. 3 Feeder Tank ..B3 Engine No. 4 Fuel Tank ..C1 Bomb Bay Aux. Fuel Tank ..C2 Bomb Bay Aux. Fuel Tank ..C3 Engine No. 1 Wing Tanks ..C4 Engine No. 2 Wing Tanks ..C5 Engine No. 3 Wing Tanks ..C6 Engine No. 4 Wing Tanks |
..D1
Engine No. 1 Oil Tank
..D2 Engine No. 2 Oil Tank ..D3 Engine No. 3 Oil Tank1 ..D4 Engine No. 4 Oil Tank ..E1 Eng.1 Supercharger Oil ..E2 Eng.2 Supercharger Oil ..E3 Eng.3 Supercharger Oil ..E4 Eng.4 Supercharger Oil ..F1 Hydraulic Oil Supply Tank ..F2 Hydraulic Accumulator ..G Heat System GLYCOL Tank ..H Propeller Anti-Icing Tank |
..I
Oxygen Filler Valve
..J Batteries (3) ..K Battery Vent Bottles ..L Hand Fire Extinguishers ..M1.Landing Gear Oil & Air Valve ..M2.Landing Gear Oil & Air Valve ..M3.Tail Gear Oil & Air Valve ..N1 Landing Tire Air Valve ..N2 Landing Tire Air Valve ..N3 Tail Tire Air Valve .. .. |
