Adak - P3 Orion Patrol Planes

Vern was able to observe the operation of the Golden Eagles at Adak
while working at the Naval Base in the summer of 1985.

..
Click on  Thumbnails for larger  View

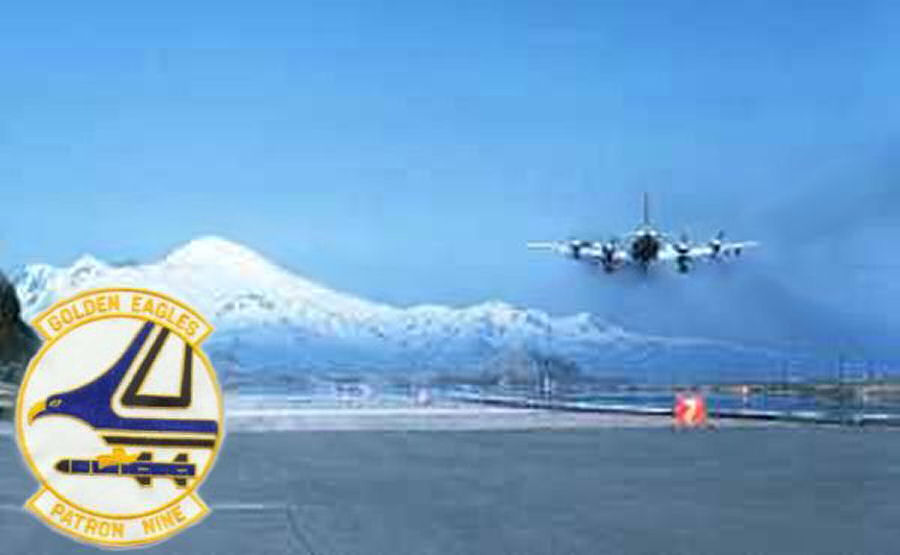

ADAK - TAKE OFF
..
ADAK APPROACH FROM EAST
..
ADAK APPROACH FROM SOUTH
..
AIRFORCE WING DAMAGE.
COCKPIT
..
POSSIBLE LOAD
..
P3-ORIEN with SUBS
..
ON PATROL
..
.FROM VARIOUS VP SITES BUT SEE: Lockheed P3 Orion Aircraft PAGE    OR: NAVY FACT FILE

P3 Orion Characteristics
From NAVAIR 01-75PAC-1.1 NFO/Aircrew NATOPS Flight Manual
The P-3C is a four-engine, low-wing aircraft designed for patrol and antisubmarine warfare.  It is in the 135,000-pound gross weight class and is powered by four T56-A-14 turboprop engines. Each engine provides 4,600shp (maximum rated) for takeoff. Distinguishing features of the aircraft include advanced submarine detection gear including interfacing  of the detection gear, the ordnance system, and the armament systems. The model is readily identified by the installation of sonobuoy chutes, visible in the lower aft fuselage of the aircraft, and three additional small windows on the starboard side of the fuselage.  Also, provisions for carrying a streamlined ESM pod-pylon assembly on a wing station are installed.

The overall
aircraft specifics
with a crew of 11
are:
,,...
...
...
...
...
....
...
...
...
Wing span: 99 feet 8 inches
Length: 116 feet 10 inches
Height to top of fin (antenna): 34 feet 3 inches
Top of fin (antenna) to lower skin: 24 feet 4 inches
Speed- Maximum
..............Cruise
405 knots, 466mph
350 knots, 403mph
Ceiling: 30,000ft., 9000 m.
Range - Typical mission 10-12 hr. Max, 14 hr.
